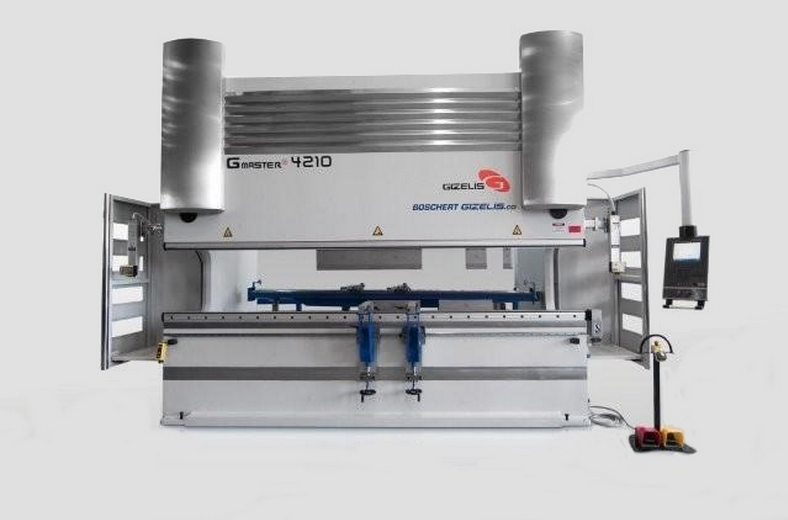

G MASTER
Standard Equipment
- Industrial control Cybelec ModEva 10S with graphical simulation.
- Y1, Y2 independent hydraulic cylinders, proportional valve technology.
- Extra welded frame on the sides.
- Rigid and stable construction.
- Efficient, low noise and accurate hydraulic system BOSCH REXROTH.
- Ram guidance with double roller bearings on each side.
- Throat depth: 400 mm.
- Daylight: 615 mm.
- Punch Stroke: 390 mm.
- 5 axis high speed back gauge system X1X2RZ1Z2 with double linear guides.
- CNC controlled anti deflection system.
- Heavy duty front gauges on linear guide.
- Fast change hydraulic upper & lower tool clamping-Wila Trumpf tools required.
- Laser safety Fiessler German origin, automatic height adjustment, CE certified.
- Wide selection of extra equipment.
SPECIFICATION
Machine Data
| L-AFFORD 15 | L-AFFORD 15R | L-CUT 25 | L-CUT 30 | L-CUT 30LD | |
|---|---|---|---|---|---|
| Working Range | |||||
| X axis | 1500 mm | 1500 mm | 1250 mm | 1500 mm | 1500 mm |
| Y axis | 1500 mm | 3000 mm | 2500 mm | 3000 mm | 3000 mm |
| Z axis | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
Laser Data
| FIBER Lasers | Co2 Lasers | ||||
|---|---|---|---|---|---|
| Max Power | 400W | 1000W | 500W | 750W | 1000W |
| Wavelength | 1.07 µm | 1.07 µm | 1.06 µm | 1.06 µm | 1.06 µm |
