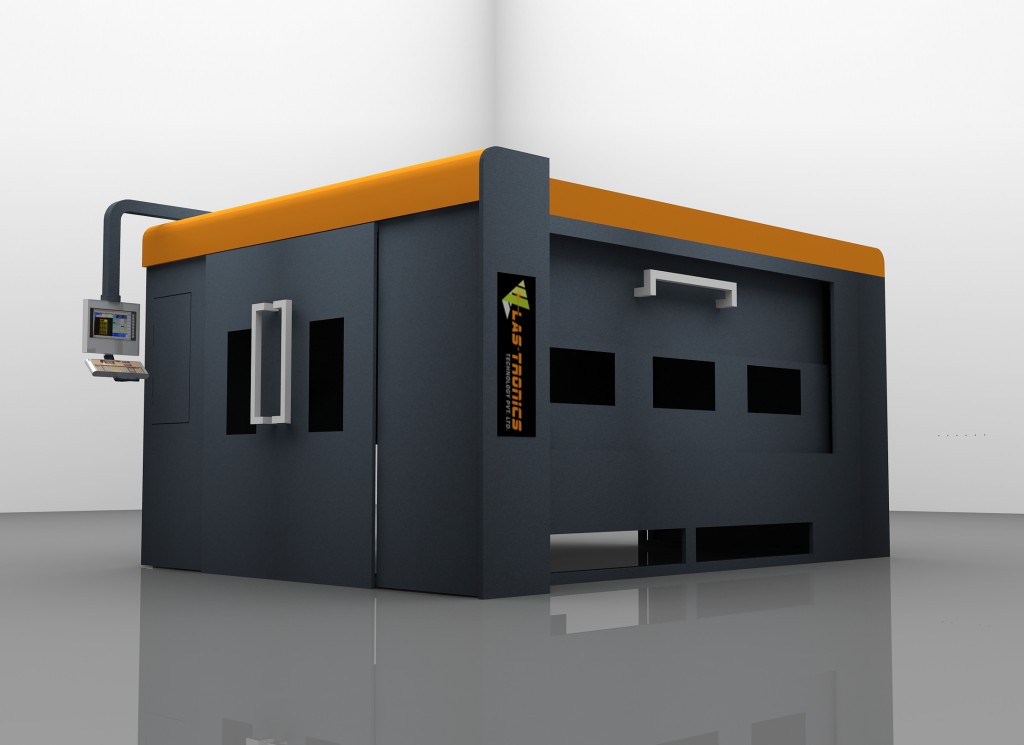

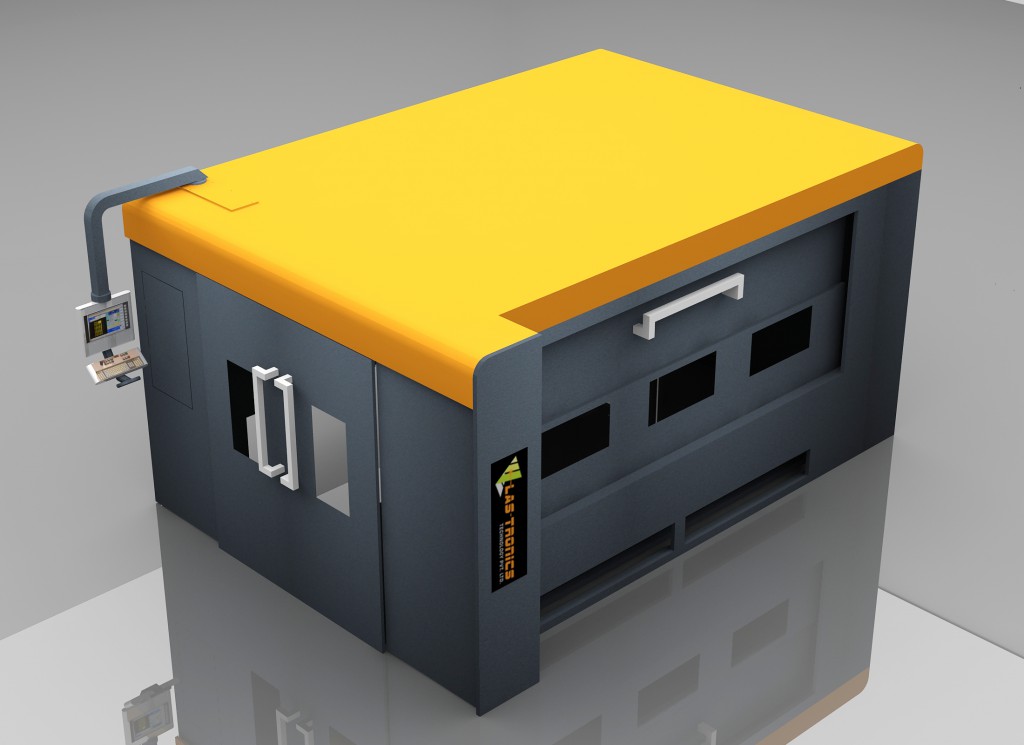

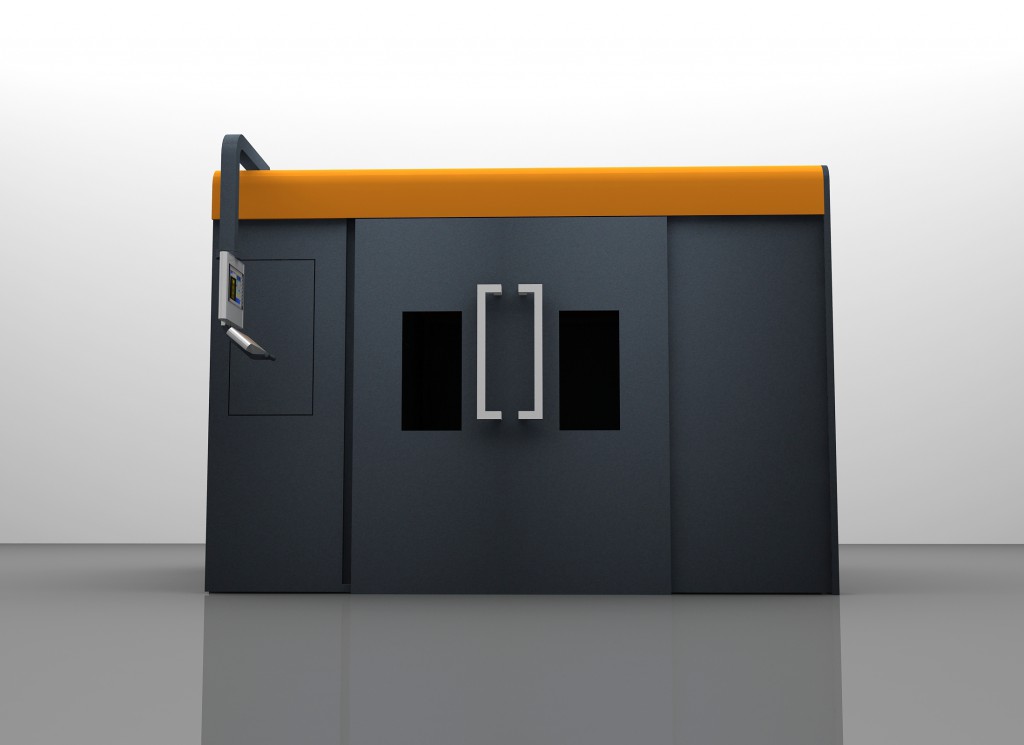

L Cut 60
BENEFITS
SPECIFICATION
Machine Data
| L-CUT 60 | |
|---|---|
| Working Range | |
| X axis | 2000mm |
| Y axis | 6000mm |
| Z axis | 150mm |
| Max. Speed | |
| Simultaneous | 100 m/min |
| Accuracy | |
| Position Deviation | ± 0.1 mm/m |
| Repeatability | ± 0.03 mm |
| Dimention & Weight | |
| Length | 9500 mm |
| Width | 5000 mm |
| Height | 2000 mm |
| Weight | 10000 kg |
Laser Data
| Fiber Lasers | CO₂ Lasers | ||||
|---|---|---|---|---|---|
| Max. Power | 400W | 1000W | 500W | 750W | 1000W |
| Wavelength | 1.07 µm | 1.07 µm | 10.6 µm | 10.6 µm | 10.6 µm |
| Max. Sheet Thickness | |||||
| Mild Steel | 4 mm | 8 mm | 4 mm | 6 mm | 10 mm |
| Stainless Steel (O₂) | 4 mm | 6 mm | 3 mm | 6 mm | 8 mm |
| Stainless Steel (Clean-Cut) |
2 mm | 4 mm | 1.5 mm | 2 mm | 5 mm |
| Brass | 0.5 mm | 2 mm | – | 1 mm | 2 mm |
| Aliminium | 0.5 mm | 2 mm | – | 1 mm | 2 mm |
| Copper | 0.5 mm | 2 mm | – | – | – |
| Acrylic | – | – | 30 mm | 30 mm | 50 mm |
| Wood | – | – | 20 mm | 25 mm | 30 mm |
| Power Consumption | 1-5 kW | 2-10 kW | 1-8 kW | 2-9 kW | 2-12 kW |
| Options | |||||
| Pallet Changer | – | – | √ | √ | √ |
| L – Rota | √ | √ | √ | √ | √ |
| Conveyor | – | – | √ | √ | √ |
| Touch Screen | √ | √ | √ | √ | √ |
| Sheet Loader | – | – | √ | √ | √ |
